KH-500LF

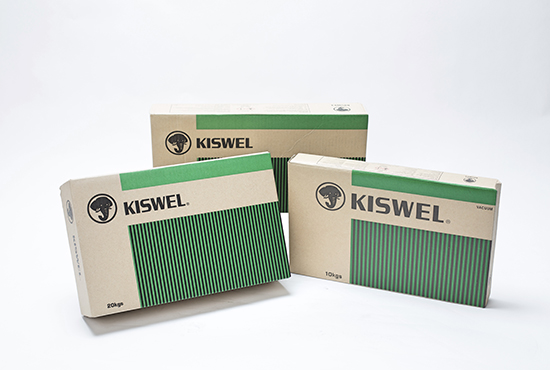

KH-500LF (KISWEL)
Welding of strength members of ship hulls, general heavy structural steels, free cutting steels and medium carbon steels
KS

D 7004 : E4316

AWS

A5.1 : E7016

EN

ISO 2560-A : E38 3 B 12 H10

EN

ISO 2560-B : E43 16 A U H10

JIS

Z 3211 : E4316

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
2.6~6.0 KS D 7004
AWS A5.1
EN ISO 2560-A
EN ISO 2560-B
JIS Z 3211		 E4316
E7016
E38 3 B 12 H10
E43 16 A U H10
E4316		 F, HF, H, VU, OH - AC/DC(+)
Key Features
Typical chemical composition all-weld metal (%)
C Si Mn P S Cr Ni Mo Remark
0.07 0.46 0.96 0.015 0.011 0.03 0.02 0.01 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
460 540 28 - 100 (-30℃) -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 2.6mm 60 90
VU, OH 2.6mm 50 80
F, HF 3.2mm 90 130
VU, OH 3.2mm 80 110
F, HF 4.0mm 140 190
VU, OH 4.0mm 120 160
F, HF 5.0mm 180 240
VU, OH 5.0mm 160 200
F, HF 6.0mm 250 300
