K-7014

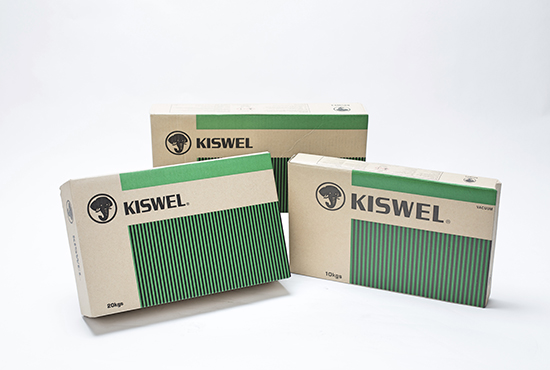

K-7014 (KISWEL)
Welding of ship structures, bridges, sheet metal and structural steel for buildings
AWS

A5.1 : E7014

EN

ISO 2560-A : E42 A RR 32

EN

ISO 2560-B : E49 14 A

JIS

Z 3211 : E4914

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
2.6~6.0 AWS A5.1
EN ISO 2560-A
EN ISO 2560-B
JIS Z 3211		 E7014
E42 A RR 32
E49 14 A
E4914		 F, HF, H, VU, OH - AC/DC(±)
Key Features
Typical chemical composition all-weld metal (%)
C Si Mn P S Cr Ni Mo Remark
0.08 0.41 0.73 0.020 0.014 0.03 0.02 0.01 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
470 550 30 - 50 (0℃) -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 2.6mm 60 100
VU, OH 2.6mm 50 90
F, HF 3.2mm 90 140
VU, OH 3.2mm 80 130
F, HF 4.0mm 140 200
VU, OH 4.0mm 110 170
F, HF 5.0mm 190 240
VU, OH 5.0mm 150 200
F, HF 6.0mm 250 310
