K-7024N

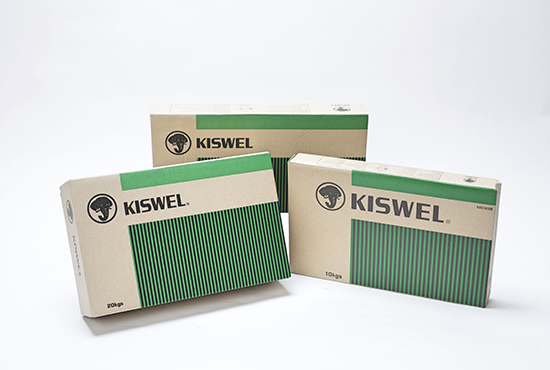

K-7024N (KISWEL)
Flat and horizontal fillet welding of ship structures, bridges and general structural steels
KS

D 7004 : E4324

AWS

A5.1 : E7024-1

EN

ISO 2560-A : E42 0 RR 53

EN

ISO 2560-B : E49 24 A

JIS

Z 3211 : E4924-1

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
3.2~6.0 KS D 7004
AWS A5.1
EN ISO 2560-A
EN ISO 2560-B
JIS Z 3211		 E4324
E7024-1
E42 0 RR 53
E49 24 A
E4924-1		 F, HF - AC/DC(±)
Key Features
Typical chemical composition all-weld metal (%)
C Si Mn P S Cr Ni Mo Remark
0.08 0.63 0.88 0.024 0.020 0.03 0.15 0.01 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
500 590 27 - 40 (-20℃) -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 3.2mm 100 150
F, HF 4.0mm 140 190
F, HF 4.5mm 180 230
F, HF 5.0mm 200 250
F, HF 5.5mm 230 270
F, HF 6.0mm 260 300
