K-7010G

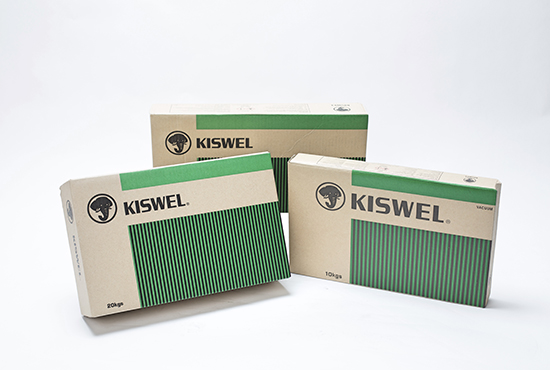

K-7010G (KISWEL)
Welding of pressure pipes, general light structural steels, agricultaral machinery
AWS

A5.5 : E7010-G

EN

ISO 2560-A : E42 0 C 22

EN

ISO 2560-B : E49 10-G A

JIS

Z 3211 : E4910-G

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
2.6~5.0 AWS A5.5
EN ISO 2560-A
EN ISO 2560-B
JIS Z 3211		 E7010-G
E42 0 C 22
E49 10-G A
E4910-G		 F, HF, H, VU, VD, OH - DC(+)
Key Features
Typical chemical composition all-weld metal (%)
C Si Mn P S Cr Ni Mo Remark
0.10 0.56 0.87 0.014 0.013 0.03 0.34 0.28 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
470 570 27 - 40 (-30℃) -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 2.6mm 50 80
VU, OH 2.6mm 40 70
F, HF 3.2mm 70 110
VU, OH 3.2mm 60 100
F, HF 4.0mm 110 150
VU, OH 4.0mm 90 130
F, HF 5.0mm 160 200
VU, OH 5.0mm 140 170
