K-8018

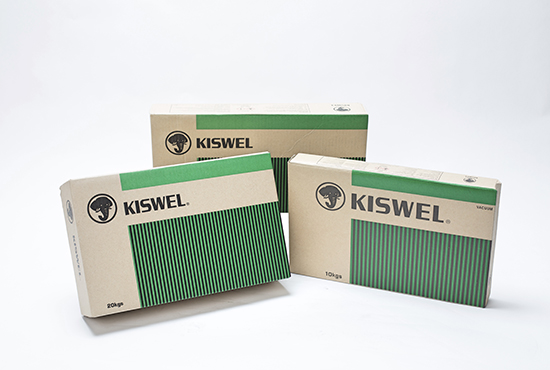

K-8018 (KISWEL)
Welding of 540MPa class high tensile steel of ships, bridges, storage tank and buildings
KS

D 7006 : E5316

AWS

A5.5 : E8018-G

EN

ISO 2560-A : E46 3 B 32 H10

EN

ISO 2560-B : E55 18-G A H10

JIS

Z 3211 : E5518-G

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
2.6~6.0 KS D 7006
AWS A5.5
EN ISO 2560-A
EN ISO 2560-B
JIS Z 3211		 E5316
E8018-G
E46 3 B 32 H10
E55 18-G A H10
E5518-G		 F, HF, H, VU, OH - AC/DC(+)
Key Features
Typical chemical composition all-weld metal (%)
C Si Mn P S Cr Ni Mo Remark
0.06 0.56 1.32 0.018 0.011 0.03 0.36 0.25 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
490 590 28 - 80 (-30℃) -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 2.6mm 60 90
VU, OH 2.6mm 50 80
F, HF 3.2mm 90 130
VU, OH 3.2mm 80 110
F, HF 4.0mm 140 190
VU, OH 4.0mm 120 170
F, HF 5.0mm 180 230
VU, OH 5.0mm 160 200
F, HF 6.0mm 250 310
