K-9018M

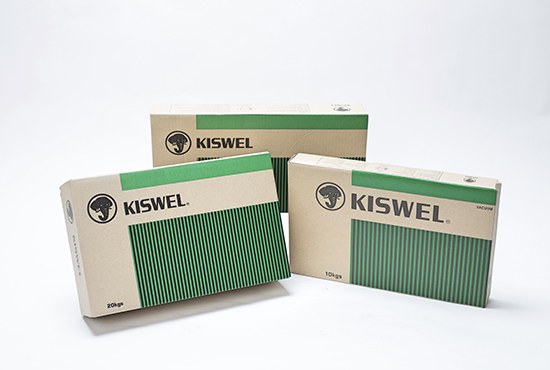

K-9018M (KISWEL)
Welding of low alloy high tensile steel having tensile properties of about 550~620MPa
KS

D 7006 : E5816

AWS

A5.5 : E9018-M

EN

ISO 2560-A : E50 5 Z B 32 H10

JIS

Z 3211 : E6218-N3M1

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
2.6~6.0 KS D 7006
AWS A5.5
EN ISO 2560-A
JIS Z 3211		 E5816
E9018-M
E50 5 Z B 32 H10
E6218-N3M1		 F, HF, H, VU, OH - AC/DC(+)
Key Features
Typical chemical composition all-weld metal (%)
C Si Mn P S Cr Ni Mo Remark
0.05 0.51 0.88 0.013 0.011 0.10 1.58 0.20 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
570 670 30 - 90 (-50℃) -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 2.6mm 50 100
VU, OH 2.6mm 40 80
F, HF 3.2mm 90 130
VU, OH 3.2mm 80 115
F, HF 4.0mm 140 190
VU, OH 4.0mm 110 160
F, HF 5.0mm 190 240
VU, OH 5.0mm 140 170
F, HF 6.0mm 250 310
