K-10018M

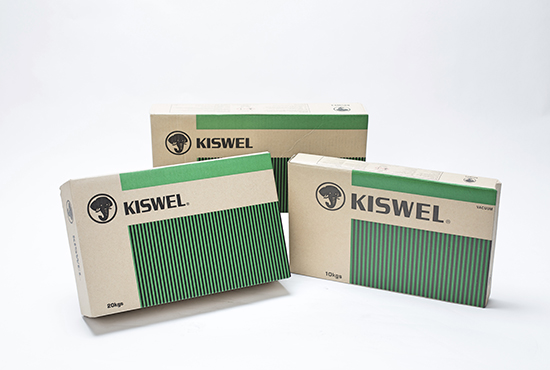

K-10018M (KISWEL)
Welding of low alloy high tensile steel having tensile properties of about 690MPa
KS

D 7006 : E7016

AWS

A5.5 : E10018-M

EN

757 : E55 3 Z B 32 H10

JIS

Z 3211 : E6918-N3M2

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
2.6~6.0 KS D 7006
AWS A5.5
EN 757
JIS Z 3211		 E7016
E10018-M
E55 3 Z B 32 H10
E6918-N3M2		 F, HF, H, VU, OH - AC/DC(+)
Key Features
Typical chemical composition all-weld metal (%)
C Si Mn P S Cr Ni Mo Remark
0.07 0.46 1.35 0.015 0.012 0.20 1.63 0.28 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
640 750 29 - 45 (-50℃) -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 3.2mm 90 130
VU, OH 3.2mm 80 115
F, HF 4.0mm 130 180
VU, OH 4.0mm 110 170
F, HF 5.0mm 180 240
VU, OH 5.0mm 140 200
F, HF 6.0mm 250 320
