K-12018M

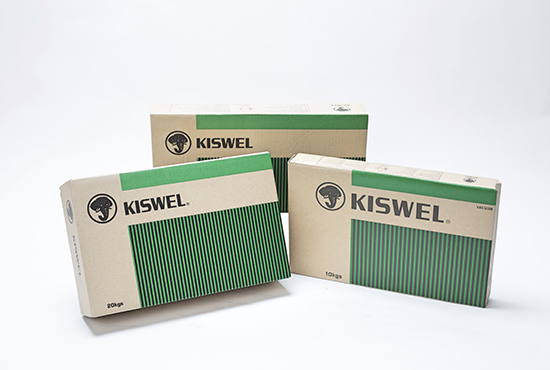

K-12018M (KISWEL)
Welding of low alloy high tensile steel having tensile properties of about 830MPa
AWS

A5.5 : E12018-M

EN

757 : E69 3 Z B 32 H10

JIS

Z 3211 : E8618-N4C2M2

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
2.6~6.0 AWS A5.5
EN 757
JIS Z 3211		 E12018-M
E69 3 Z B 32 H10
E8618-N4C2M2		 F, HF, H, VU, OH - AC/DC(+)
Key Features
Typical chemical composition all-weld metal (%)
C Si Mn P S Cr Ni Mo Remark
0.08 0.30 1.46 0.014 0.013 0.95 1.86 0.41 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
800 940 20 - 40 (-50℃) -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 2.6mm 70 100
VU, OH 2.6mm 60 90
F, HF 3.2mm 90 130
VU, OH 3.2mm 70 100
F, HF 4.0mm 150 190
VU, OH 4.0mm 120 160
F, HF 5.0mm 180 230
VU, OH 5.0mm 140 180
F, HF 6.0mm 220 300
