K-8018D1

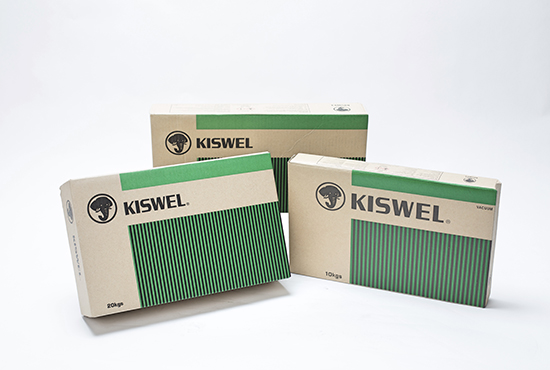

K-8018D1 (KISWEL)
Welding of 540MPa class high tensile steel or 1.5%Mn-0.35%Mo steel
AWS

A5.5 : E8018-D1 H4

EN

ISO 2560-B : E55 18-3M2 P H5

JIS

Z 3211 : E5518-3M2 P H5

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
3.2~6.0 AWS A5.5
EN ISO 2560-B
JIS Z 3211		 E8018-D1 H4
E55 18-3M2 P H5
E5518-3M2 P H5		 F, HF, H, VU, OH - AC/DC(+)
Key Features
Typical chemical composition all-weld metal (%)
C Si Mn P S Cr Ni Mo Remark
0.07 0.47 1.33 0.013 0.013 0.02 0.77 0.30 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
640 690 25 - 40 (-50℃) 620℃ X 1Hr
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 2.6mm 70 100
VU, OH 2.6mm 60 90
F, HF 3.2mm 90 150
VU, OH 3.2mm 80 130
F, HF 4.0mm 150 190
VU, OH 4.0mm 120 170
F, HF 5.0mm 190 260
VU, OH 5.0mm 140 200
