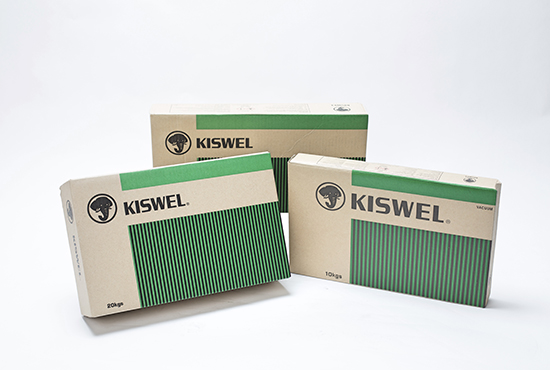

K-7018G
K-7018G (KISWEL)
Welding of 1%Ni steel and aluminium-killed steel used at low temperature, LPG tanks, etc.
AWS

A5.5 : E7018-g H4R

EN

ISO 2560-A : E42 5 1Ni B 32 H5

EN

ISO 2560-B : E49 18-g A H5

JIS

Z 3211 : E4918-G H5

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
2.6~5.0 AWS A5.5
EN ISO 2560-A
EN ISO 2560-B
JIS Z 3211		 E7018-g H4R
E42 5 1Ni B 32 H5
E49 18-g A H5
E4918-G H5		 F, HF, H, VU, OH - AC/DC(+)
Key Features
Typical chemical composition all-weld metal (%)
C Si Mn P S Cr Ni Mo Remark
0.04 0.24 0.91 0.016 0.016 0.05 1.01 0.02 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
520 600 34 - 70 (-50℃) -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 2.6mm 60 90
VU, OH 2.6mm 50 80
F, HF 3.2mm 90 140
VU, OH 3.2mm 80 120
F, HF 4.0mm 150 190
VU, OH 4.0mm 120 160
F, HF 5.0mm 180 230
VU, OH 5.0mm 150 200
