KM-900

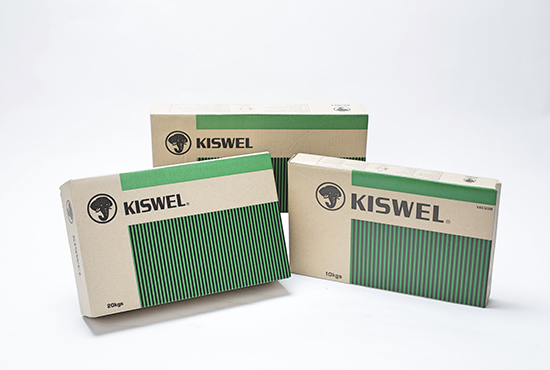

KM-900 (KISWEL)
For impact and abrasion resistance. Hardfacing of crushers, high manganese stlle rails, bucket lip and shovel teeth
KS

D 7035 : DFMA-250-B

JIS

Z 3251 : DFMA-250-B

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
3.2~6.0 KS D 7035
JIS Z 3251		 DFMA-250-B
DFMA-250-B		 F, HF - AC/DC(+)
Key Features
Typical chemical composition all-weld metal (%)
C Si Mn P S Cr Ni Mo Remark
0.52 0.30 12.10 0.018 0.012 0.10 0.02 0.20 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
- - - 230 - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 3.2mm 90 130
F, HF 4.0mm 140 180
F, HF 5.0mm 190 240
F, HF 6.0mm 220 300
