KM-650

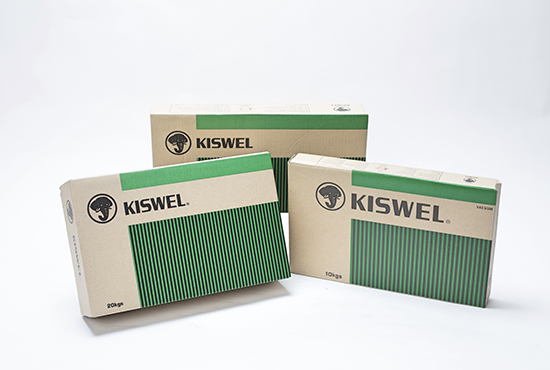

KM-650 (KISWEL)
For scratching abrasion. Hardfacing of pump casings, impellers and buckets, etc.
CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
3.2~5.0 DIN 8555 E10-UM-60 F, HF - AC/DC(+)
Key Features
Typical chemical composition all-weld metal (%)
C Si Mn P S Cr Ni Mo Remark
3.10 0.89 1.90 0.013 0.002 30.55 0.01 0.01 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
- - - 735 - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 3.2mm 120 150
F, HF 4.0mm 160 200
F, HF 5.0mm 220 260
