KC-80D2

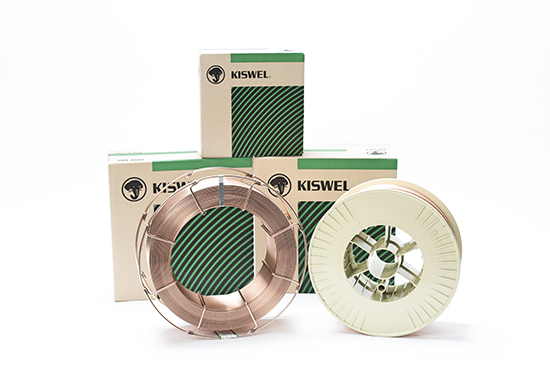

KC-80D2 (KISWEL)
For butt and fillet welding of structural steels, boiler and pressure vessels such as 0.5%Mo heat-resistant steel
KS

D 7120 : YGM-C

AWS

A5.28 : ER80S-D2

JIS

Z 3317 : YGM-C

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
0.8~1.6 AWS A5.28
KS D 7120
JIS Z 3317		 ER80S-D2
YGM-C
YGM-C		 F, HF CO2 DC(+)
Key Features
Typical chemical composition of wire (%)
C Si Mn P S Cr Ni Mo Remark
0.08 0.58 1.85 0.014 0.009 - - 0.46 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
610 690 25 - 60 (-30℃) -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
- 0.9mm 70 250 14 25
- 1.2mm 100 350 16 34
- 1.6mm 120 450 16 38
