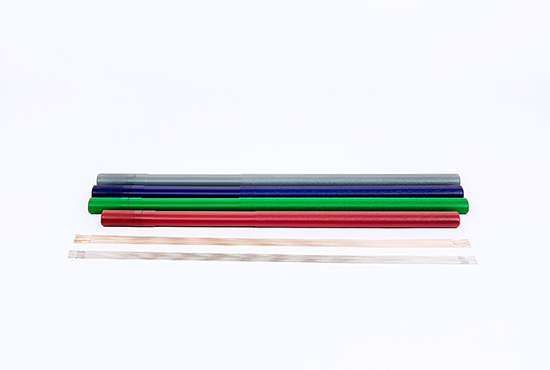

T-100
- For TIG welding of 690MPa high tensile steel used for pipe line, offshore, structure, constructionmachinery, pressure vessels, etc
- AWS
A5.28 : ER100S-1
- EN
16835-B : W 69A 5 U N3M2
- JIS
Z 3316 : W 69 A 5U N3M2
- Key Features
-
Key Features Sizes (mm) Standard Welding Position
View(+)Shielding gas Polarity 1.2~4.0 AWS A5.28
EN 16835-B
JIS Z 3316ER100S-1
W 69A 5 U N3M2
W 69 A 5U N3M2F, HF, H, VU, VD, OH Ar DC(-) Key Features Typical chemical composition of wire (%) C Si Mn P S Cr Ni Mo Remark 0.05 0.26 1.51 0.006 0.005 - 1.95 0.40 - Key Features Typical mechanical properties of all-weld metal Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT 710 760 27 - 330 (-50℃) -
- Product Dimensions and Weld Current Range
