T-410

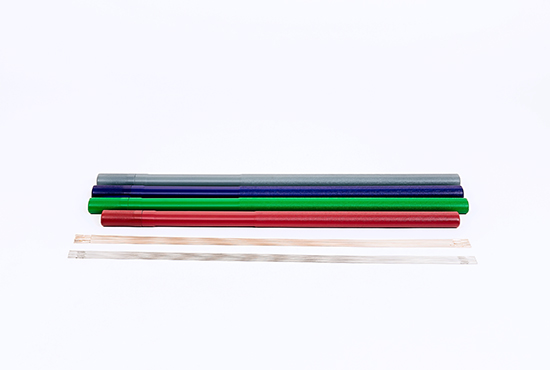

T-410 (KISWEL)
Welding of 13%Cr steels (AISI Type 403, 410)
KS

D 7026 : Y410

AWS

A5.9 : ER410

EN

14343 B : SS410

JIS

Z 3321 : Y410

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
1.2~4.0 AWS A5.9
EN 14343 B
KS D 7026
JIS Z 3321		 ER410
SS410
Y410
Y410		 F, HF, H, VU, VD, OH Ar DC(-)
Key Features
Typical chemical composition of wire (%)
C Si Mn P S Cr Ni Mo Remark
0.01 0.32 0.36 - - 0.19 12.61 0.02 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
320 530 37 - - 730~760℃x1Hr
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
All Positon 0.9mm 50 80 10 12
All Positon 1.2mm 70 120 10 12
All Positon 1.6mm 90 170 11 16
All Positon 2.4mm 100 200 13 20
All Positon 3.2mm 120 250 13 22
