T-430

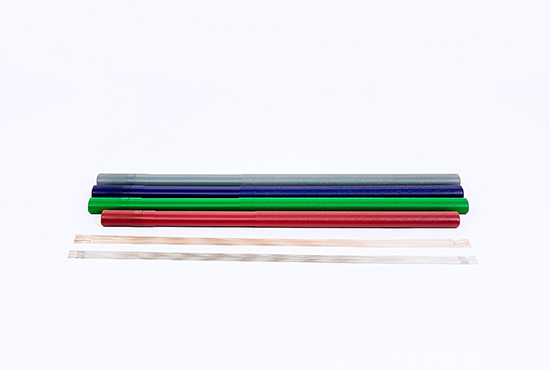

T-430 (KISWEL)
Welding of 17%Cr steel and clad side types 403, 405 clad steels. Welding of dissimilar steels such as Cr-stainless steel to carbon steel.
KS

D 7026 : Y430

AWS

A5.9 : ER430

EN

14343 B : SS430

JIS

Z 3321 : Y430

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
1.2~4.0 AWS A5.9
EN 14343 B
KS D 7026
JIS Z 3321		 ER430
SS430
Y430
Y430		 F, HF, H, VU, VD, OH Ar DC(-)
Key Features
Typical chemical composition of wire (%)
C Si Mn P S Cr Ni Mo Remark
0.01 0.37 0.39 - - 0.24 16.67 - -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
320 530 37 - - 760~790℃x1Hr
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
All Positon 0.9mm 50 80 10 12
All Positon 1.2mm 70 120 10 12
All Positon 1.6mm 90 170 11 16
All Positon 2.4mm 100 200 13 20
All Positon 3.2mm 120 250 13 22
