M-307Si

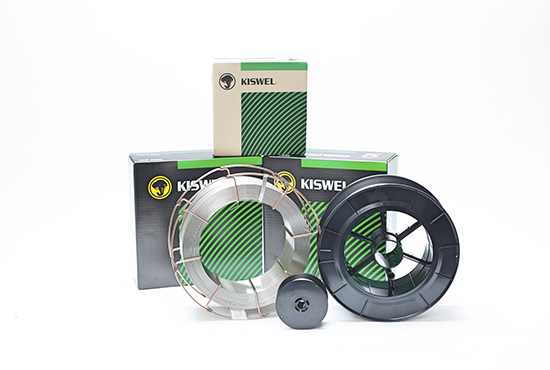

M-307Si (KISWEL)
Welding of dissimilar steel such as austenitic manganese steel to carbon steel forgings
EN

14343-A : G 18 8 Mn

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
0.8~1.6 EN 14343-A G 18 8 Mn F, HF Ar DC(+)
Key Features
Typical chemical composition of wire (%)
C Si Mn P S Cr Ni Mo Remark
0.07 0.84 6.79 - - 18.79 8.91 - -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
440 610 40 - 77 (-40℃)
68 (-60℃)		 -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 0.9mm 70 250 14 25
F, HF 1.2mm 100 300 16 32
F, HF 1.4mm 120 320 16 34
