M-309LSi

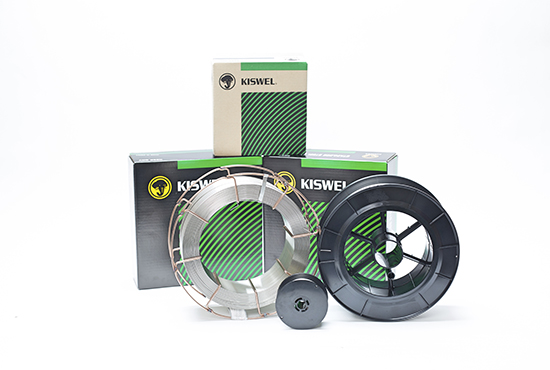

M-309LSi (KISWEL)
Welding of similar alloys in wrought or cast forms, Joining of Type 304 to carbon steel and welding the clad side to Type 304 clad steels.
AWS

A5.9 : ER309LSi

EN

14343 B : SS309LSi

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
0.8~1.6 AWS A5.9
EN 14343 B		 ER309LSi
SS309LSi		 F, HF Ar DC(+)
Key Features
Typical chemical composition of wire (%)
C Si Mn P S Cr Ni Mo Remark
0.01 0.91 1.86 - - 23.07 13.62 0.11 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
410 520 40 - 90 (0℃) -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
- 0.9mm 70 250 14 25
- 1.2mm 100 300 16 32
- 1.4mm 120 320 16 34
