M-316

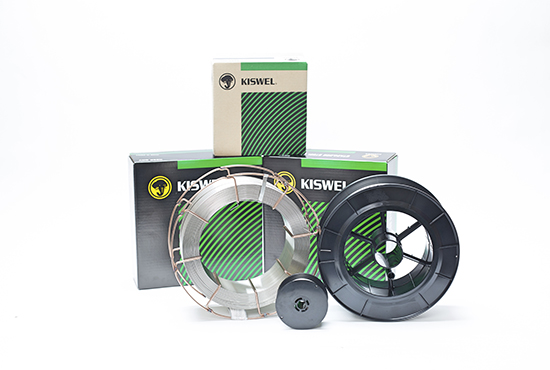

M-316 (KISWEL)
Welding of 18%Cr-12%Ni-Mo steel. (AISI Type 316)
KS

D 7026 : Y316

AWS

A5.9 : ER316

EN

14343 B : SS316

JIS

Z 3321 : Y316

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
0.8~1.6 AWS A5.9
EN 14343 B
KS D 7026
JIS Z 3321		 ER316
SS316
Y316
Y316		 F, HF Ar DC(+)
Key Features
Typical chemical composition of wire (%)
C Si Mn P S Cr Ni Mo Remark
0.04 0.44 1.6 - - 12.17 19.22 2.26 -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
420 570 40 - 140 (0℃)
50 (-196℃)		 -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 0.9mm 70 250 14 25
F, HF 1.2mm 100 300 16 32
F, HF 1.4mm 120 320 16 34
