M-409Cb

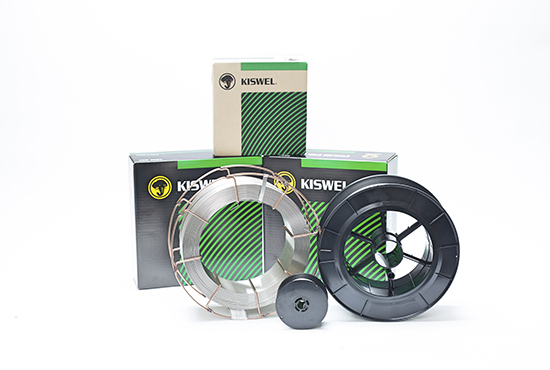

M-409Cb (KISWEL)
Welding of 18%Cr-9%Ni-Nb steel (AISI Type 409), used on robots withing the automotive industry for vehicle exhausst systems.
AWS

A5.9 : ER409Nb

EN

14343 B : SS409Nb

Catalog
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
0.8~1.6 AWS A5.9
EN 14343 B		 ER409Nb
SS409Nb		 F, HF Ar DC(+)
Key Features
Typical chemical composition of wire (%)
C Si Mn P S Cr Ni Mo Remark
0.02 0.45 0.52 - - 11.57 0.34 0.05 Nb : 0.35
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
280 465 20 - - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 0.9mm 70 250 14 25
F, HF 1.2mm 100 300 16 32
F, HF 1.4mm 120 320 16 34
