KNCF-2

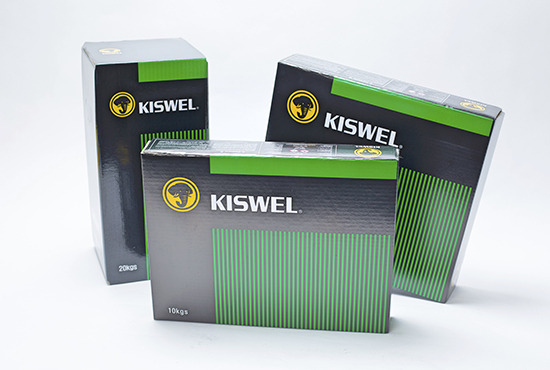

KNCF-2 (KISWEL)
Welding of Ni-Cr-Fe alloy steel (Inconel 600, 601) or different materials, such as Inconels, Inconel and low alloy steels, stainless steels and low alloy steels
AWS

A5.11 : ENiCrFe-2

EN

ISO 14172 : E Ni 6092

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
2.6~5.0 AWS A5.11
EN ISO 14172		 ENiCrFe-2
E Ni 6092		 F, HF, H, VU, OH - DC(+)
Key Features
Typical chemical composition all-weld metal (%)
C Si Mn P S Cr Ni Mo Remark
0.02 0.37 1.69 0.011 0.005 14.42 Rem. 0.89 Fe : 7.94
Nb+Ta :1.45
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
490 620 43 - - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 2.6mm 60 80
VU, OH 2.6mm 50 70
F, HF 3.2mm 80 120
VU, OH 3.2mm 70 100
F, HF 4.0mm 120 150
VU, OH 4.0mm 100 140
F, HF 5.0mm 150 180
