KW-A82

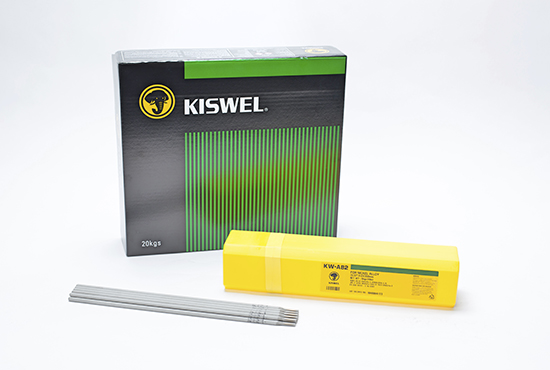

KW-A82 (KISWEL)
Welding of Ni-Cr-Fe alloy steel (Inconel 600, 601) or different materials, such as Inconels, Inconel and low alloy steels, stainless steels and low alloy steels
KS

D 7021 : DNiCrFe-3

AWS

A5.11 : ENiCrFe-3

EN

ISO 14172 : E Ni 6182

JIS

Z 3224 : DNiCrFe-3

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
2.6~5.0 KS D 7021
AWS A5.11
EN ISO 14172
JIS Z 3224		 DNiCrFe-3
ENiCrFe-3
E Ni 6182
DNiCrFe-3		 F, HF, H, VU, OH - DC(+)
Key Features
Typical chemical composition all-weld metal (%)
C Si Mn P S Cr Ni Mo Remark
0.02 0.57 5.57 0.010 0.004 15.27 Rem. 0.12 Fe : 7.32
Nb+Ta :2.16
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
510 660 48 - - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 2.6mm 60 80
VU, OH 2.6mm 50 70
F, HF 3.2mm 80 120
VU, OH 3.2mm 70 100
F, HF 4.0mm 120 150
VU, OH 4.0mm 100 140
F, HF 5.0mm 150 180
