KW-T690A

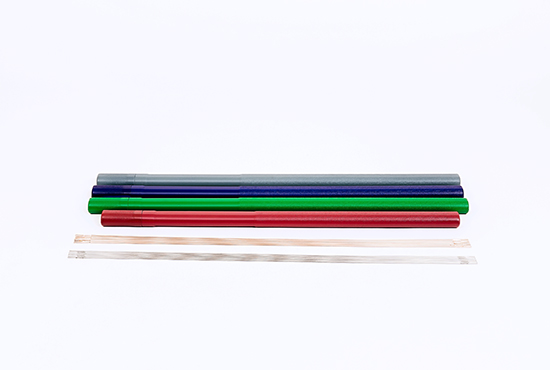

KW-T690A (KISWEL)
Inconel 690. It can be used for dissimilar welding of nickel alloys, steels or stainless steels.
AWS

A5.14 : ERNiCrFe-7

EN

18274 : S Ni 6052 (NiCr30Fe9)

Catalog
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
0.9~1.2 AWS A5.14 ERNiCrFe-7A F, HF, H, VU, VD, OH Ar DC(-)
Key Features
Typical chemical composition of wire (%)
C Si Mn P S Cr Ni Nb Remark
0.01 0.20 0.43 - - 30.40 57.50 0.81 Fe : 8.80
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
- 600 46 - - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
All Positon 0.9mm 50 80 10 12
All Positon 1.2mm 70 120 10 12
