KW-T60

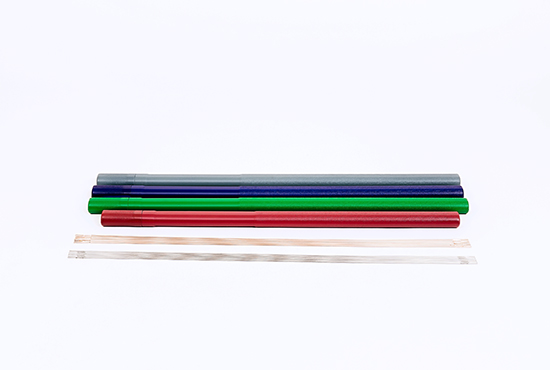

KW-T60 (KISWEL)
Monel 400, 402. (ASTM B127, B164, B165, UNS N04400). It can be used for surfacing steels and dissimilar welding of monel to steels.
KS

D 7045 : YNiCu-7

AWS

A5.14 : ERNiCu-7

EN

18274 : S Ni 4060 (NiCu30Mn3Ti)

JIS

Z 3334 : YNiCu-7

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
1.2~3.2 AWS A5.14
EN 18274
JIS Z 3334
KS D 7045		 ERNiCu-7
S Ni 4060 (NiCu30Mn3Ti)
YNiCu-7
YNiCu-7		 F, HF, H, VU, VD, OH Ar DC(-)
Key Features
Typical chemical composition of wire (%)
C Si Mn P S Cr Ni Mo Remark
0.03 0.21 3.26 - - 3.25 65.2 0.21 Fe : 2.20
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
- 510 31 - - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
All Positon 0.9mm 50 80 10 12
All Positon 1.2mm 70 120 10 12
