KW-T617

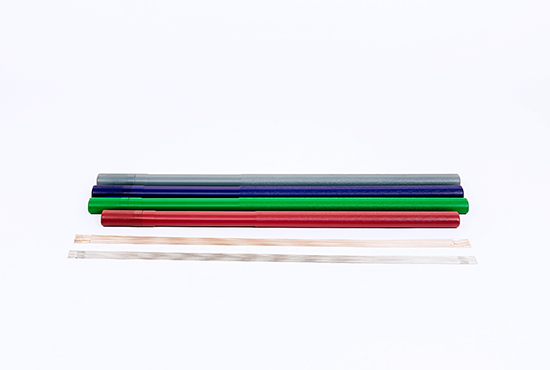

KW-T617 (KISWEL)
Inconel 617. It can be used for welding parts required strength and corossion resistance at high temperature.
AWS

A5.14 : ERNiCrCoMo-1

EN

18274 : S Ni 6617(NiCr22Co12Mo9)

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
1.2~3.2 AWS A5.14
EN 18274		 ERNiCrCoMo-1
S Ni 6617(NiCr22Co12Mo9)		 F, HF, H, VU, VD, OH Ar DC(-)
Key Features
Typical chemical composition of wire (%)
C Si Mn P S Cr Ni Mo Remark
0.07 0.3 0.32 - - 22.31 Rem. 8.76 Fe : 0.89
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
- 620 25 - - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
All Positon 0.9mm 50 80 10 12
All Positon 1.2mm 70 120 10 12
