KW-T718

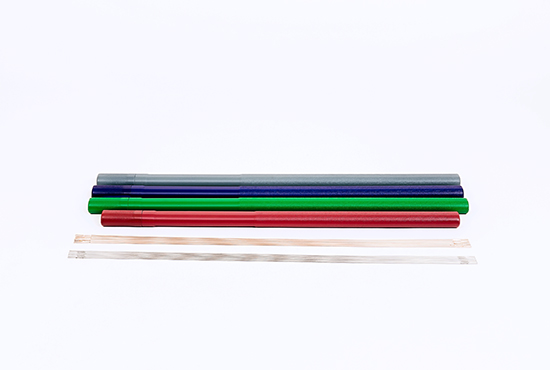

KW-T718 (KISWEL)
Inconel 718, 706 and X-750. It can be used for welding parts required strength and corossion resistance at high temperature. The weld metal has the mechanical properties after aging.
AWS

A5.14 : ERNiFeCr-2

EN

18274 : S Ni 7718 (NiCr19Fe19No5Mo3)

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
1.2~3.2 AWS A5.14
EN 18274		 ERNiFeCr-2
S Ni 7718 (NiCr19Fe19No5Mo3)		 F, HF, H, VU, VD, OH Ar DC(-)
Key Features
Typical chemical composition of wire (%)
C Si Mn P S Cr Ni Mo Remark
0.05 0.06 0.03 - - 17.55 52.78 3.08 Fe : 19.80
Nb : 5.1
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
- 1200 12 - - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
All Positon 0.9mm 50 80 10 12
All Positon 1.2mm 70 120 10 12
