KW-M61

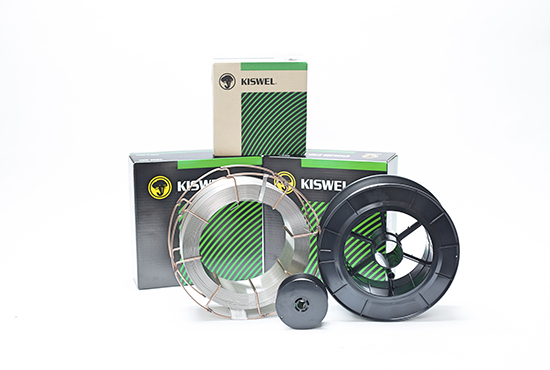

KW-M61 (KISWEL)
Pure nickel, nickel alloys and repair welding of cast iron. It can be used for dissimilar welding of nickel, steels, monel, cupronickel and stainless steels.
KS

D 7045 : YNi-1

AWS

A5.14 : ERNi-1

EN

18274 : S Ni 2061 (NiTi3)

JIS

Z 3334 : YNi-1

CatalogMSDS
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
0.8~1.6 AWS A5.14
EN 18274
JIS Z 3334
KS D 7045		 ERNi-1
S Ni 2061 (NiTi3)
YNi-1
YNi-1		 F,HF Ar DC(+)
Key Features
Typical chemical composition of wire (%)
C Si Mn P S Cr Ni Mo Remark
0.01 0.27 0.4 - - - 98.8 - -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
- 450 29 - - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 0.9mm 70 200 14 22
F, HF 1.2mm 100 300 16 32
