KW-M82

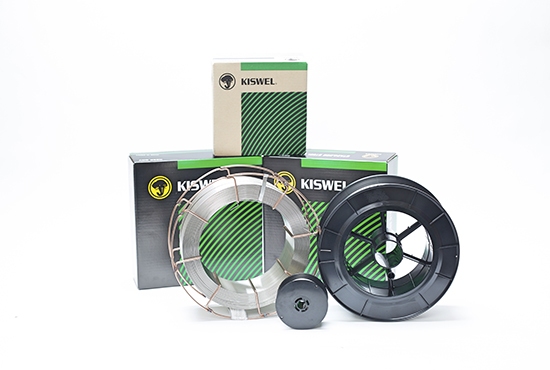

KW-M82 (KISWEL)
Inconel 600, Incoloy 800(HT). (ASTM B 163, B166, B167 or UNS N06082).
KS

D 7045 : YNiCr-3

AWS

A5.14 : ERNiCr-3

EN

18274 : S Ni 6082(NiCr20Mn3Nb)

JIS

Z 3334 : YNiCr-3

CatalogMSDS
Application

The weld metal has high strength and good corrosion resistance at elevated temperature.

Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
0.8~1.6 AWS A5.14
EN 18274
JIS Z 3334
KS D 7045		 ERNiCr-3
S Ni 6082(NiCr20Mn3Nb)
YNiCr-3
YNiCr-3		 F,HF Ar DC(+)
Key Features
Typical chemical composition of wire (%)
C Si Mn P S Cr Ni Mo Remark
0.02 0.11 3.09 - - 20.32 71.9 - Fe : 1.04
Nb : 2.44
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
- 640 36 - - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 0.9mm 70 200 14 22
F, HF 1.2mm 100 300 16 32
