KW-M690A

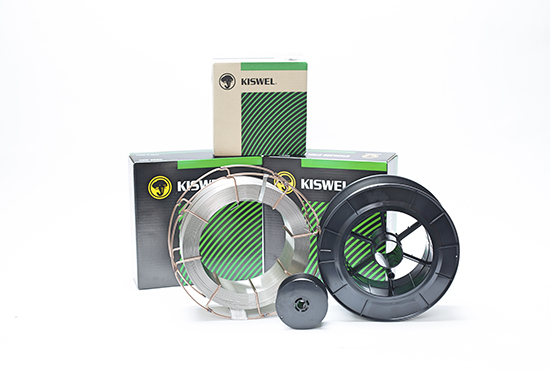

KW-M690A (KISWEL)
Inconel 690A. It can be used for dissimilar welding of nickel alloys, steels or stainless steels.
AWS

A5.14 : ERNiCrFe-7

Catalog
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
0.8~1.6 AWS A5.14 ERNiCrFe-7A F,HF Ar DC(+)
Key Features
Typical chemical composition of wire (%)
C Si Mn P S Cr Ni Nb Remark
0.01 0.20 0.43 - - 30.40 57.50 0.81 Fe : 8.80
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
- 600 46 - - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
- 0.9mm 70 200 14 22
- 1.2mm 100 300 16 32
