KW-M60

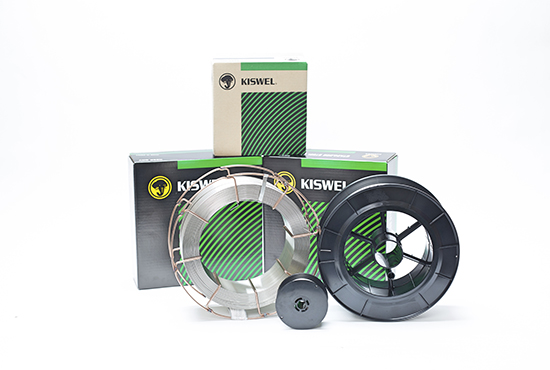

KW-M60 (KISWEL)
Monel 400, 402. (ASTM B127, B164, B165, UNS N04400).
KS

D 7045 : YNiCu-7

AWS

A5.14 : ERNiCu-7

EN

18274 : S Ni 4060 (NiCu30Mn3Ti)

JIS

Z 3334 : YNiCu-7

CatalogMSDS
Application

It can be used for surfacing steels and dissimilar welding of monel to steels.

Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
0.8~1.6 AWS A5.14
EN 18274
JIS Z 3334
KS D 7045		 ERNiCu-7
S Ni 4060 (NiCu30Mn3Ti)
YNiCu-7
YNiCu-7		 F,HF Ar DC(+)
Key Features
Typical chemical composition of wire (%)
C Si Mn P S Cr Ni Mo Remark
0.03 0.21 3.26 - - 3.25 65.2 0.21 Fe : 2.20
Cu : 28.58
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
- 510 31 - - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 0.9mm 70 200 14 22
F, HF 1.2mm 100 300 16 32
