KW-MCuNi9

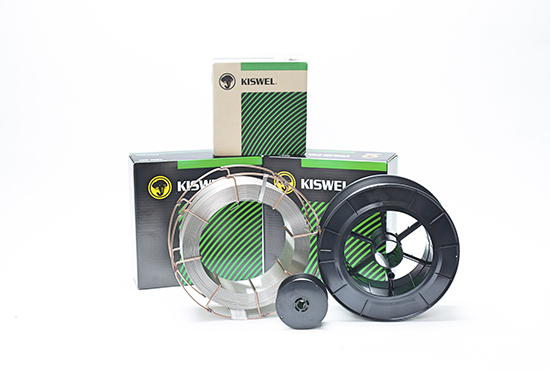

KW-MCuNi9 (KISWEL)
90%Cu-10%Ni Cupronickel and copper alloys
KS

D 7044 : YNiCr-3

EN

14640 : S Cu 7061 (CuNi10)

JIS

Z 3341 : YNiCr-3

CatalogMSDS
Application

 It can be used for surfacing steels and dissimilar welding of copper alloys with steels

Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
0.8~1.6 EN 14640
JIS Z 3341
KS D 7044		 S Cu 7061 (CuNi10)
YNiCr-3
YNiCr-3		 F,HF Ar DC(+)
Key Features
Typical chemical composition of wire (%)
Cu Si Mn P S Cr Ni Mo Remark
Rem. 0.03 0.85 - - - 10.47 - Fe : 0.30
Ti : 0.31
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
- 370 37 - - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 0.9mm 70 200 14 22
F, HF 1.2mm 100 300 16 32
