KW-MCuAlA2

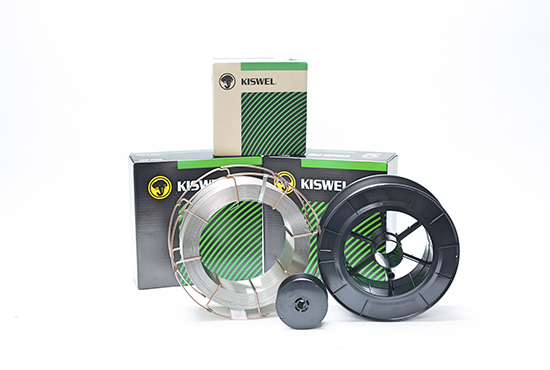

KW-MCuAlA2 (KISWEL)
Aluminum bronze and many ferrous and non ferrous metals
KS

D 7044 : YCuAl

AWS

A5.7 : ERCuAlA2

EN

14640 : S Cu 6180 (CuAl10)

JIS

Z 3341 : YCuAl

MSDS
Application

It can be used for resistance to corrosion, erosion and repair welding

Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
0.8~1.2 AWS A5.7
EN 14640
JIS Z 3341
KS D 7044		 ERCuAlA2
S Cu 6180 (CuAl10)
YCuAl
YCuAl		 F,HF Ar DC(+)
Key Features
Typical chemical composition of wire (%)
Cu Si Mn P S Cr Ni Mo Remark
Rem. 0.05 0.01 - - - - - Fe : 0.79
Al : 9.04
Zn : 0.01
Pb : 0.001
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
- 556 32 - - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 0.9mm 70 200 14 22
F, HF 1.2mm 100 300 16 32
