KISWEL is about connecting values
  • home

ALL PRODUCTS

Line-Up

KW-MCuSi

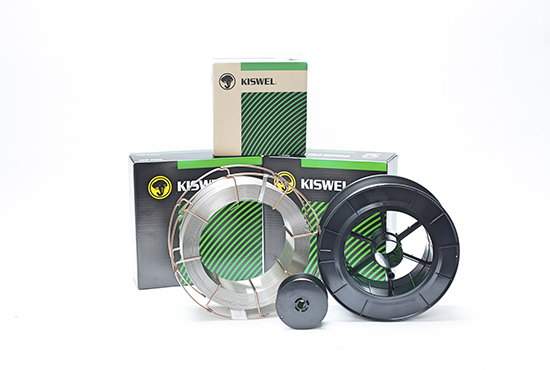

KW-MCuSi (KISWEL)
Silicon bronzes, brasses and galvanized steels
KS

D 7044 : YCuSi B

AWS

A5.7 : ERCuSi-A

EN

14640 : S Cu 6560 (CuSi3Mn1)

JIS

Z 3341 : YCuSi B

CatalogMSDS
Application

 It can be used for surfacing area subjected to corrosion.

Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
0.8~1.2 AWS A5.7
EN 14640
JIS Z 3341
KS D 7044		 ERCuSi-A
S Cu 6560 (CuSi3Mn1)
YCuSi B
YCuSi B		 F,HF Ar DC(+)
Key Features
Typical chemical composition of wire (%)
Cu Si Mn P S Cr Ni Mo Remark
Rem. 2.94 0.85 - - - - - Fe : 0.03
Zn : 0.01
Pb : 0.003
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
- 345 30 - - -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
F, HF 0.9mm 70 200 14 22
F, HF 1.2mm 100 300 16 32
