EF-200V×KD-EH12K

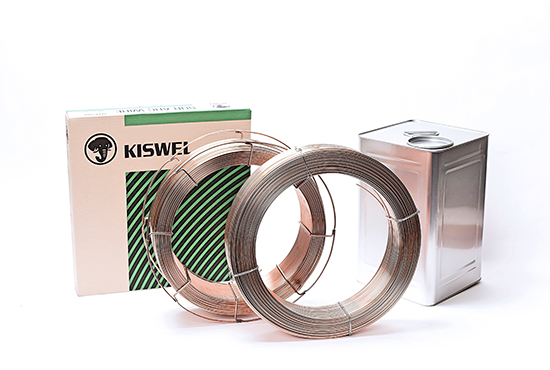

EF-200V×KD-EH12K (KISWEL)
Single and multi-layer welding of various kinds of structures such as offshore structures, machinery and heavy wall steel pipes. Neutral flux for multi-pass welding. Excellent impact toughness at low temperature.
KS

B ISO 14171 : S 46 6 CS S3Si

AWS

A5.17 : F7A(P)8-EH12K

EN

ISO 14171 : S 46 6 CS S3Si

JIS

Z 3183 : S502-H

Catalog
Key Features
Key Features
Sizes (mm) Standard Welding Position
View(+)		 Shielding gas Polarity
2.4~4.8 AWS A5.17
EN ISO 14171
JIS Z 3183
KS B ISO 14171		 F7A(P)8-EH12K
S 46 6 CS S3Si
S502-H
S 46 6 CS S3Si		 F - DC(+)
Key Features
Typical chemical composition all-weld metal (%)
C Si Mn P S Cr Ni Mo Remark
0.08 0.35 1.75 0.024 0.008 - - - -
Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa) T.S (MPa) EI. (%) Hardness (HV) IV (J) PWHT
550 590 30 - 100 (-62℃) -
Product Dimensions and Weld Current Range
Product Dimensions and Weld Current Range
Welding
Position		 Sizes (mm) Ampere (A) Volt (V)
Min. Max. Min. Max.
- 2.4mm 250 500 28 32
- 3.2mm 300 650 28 32
- 4.0mm 400 1200 30 34
- 4.8mm 500 1400 32 36
