EF-200LT×KD-60

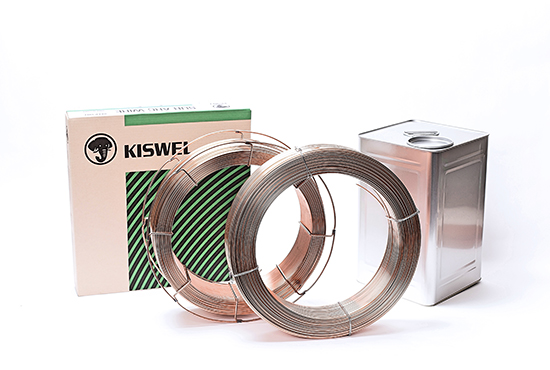

EF-200LT×KD-60 (KISWEL)

Single and multi-layer welding of 560MPa high tensile strength steels for low temperature service. Neutral flux for multi-pass welding. Single and multi-layer welding of 560MPa high tensile strength: KS
B ISO 14171 : S 50 5 CS SZ; AWS
A5.23 : F9A8-EA3-G; EN
ISO 14171 : S 50 5 CS SZ; JIS
Z 3183 : S584-H

Catalog

Key Features

Key Features
Sizes (mm)	Standard		Welding Position View(+)	Shielding gas	Polarity
2.4~4.8	AWS A5.23 EN ISO 14171 JIS Z 3183 KS B ISO 14171	F9A8-EA3-G S 50 5 CS SZ S584-H S 50 5 CS SZ	F	-	DC(+)

Key Features
Typical chemical composition all-weld metal (%)
C	Si	Mn	P	S	Cr	Ni	Mo	Remark
0.07	0.14	1.50	0.022	0.009	-	-	0.46	-

Key Features
Typical mechanical properties of all-weld metal
Y.S (MPa)	T.S (MPa)	EI. (%)	Hardness (HV)	IV (J)	PWHT
640	670	26	-	60 (-62℃)	-

Product Dimensions and Weld Current Range

Product Dimensions and Weld Current Range
Welding Position	Sizes (mm)	Ampere (A)		Volt (V)
Welding Position	Sizes (mm)	Min.	Max.	Min.	Max.
-	2.4mm	250	500	28	32
-	3.2mm	300	650	28	32
-	4.0mm	400	1200	30	34
-	4.8mm	500	1400	32	36
